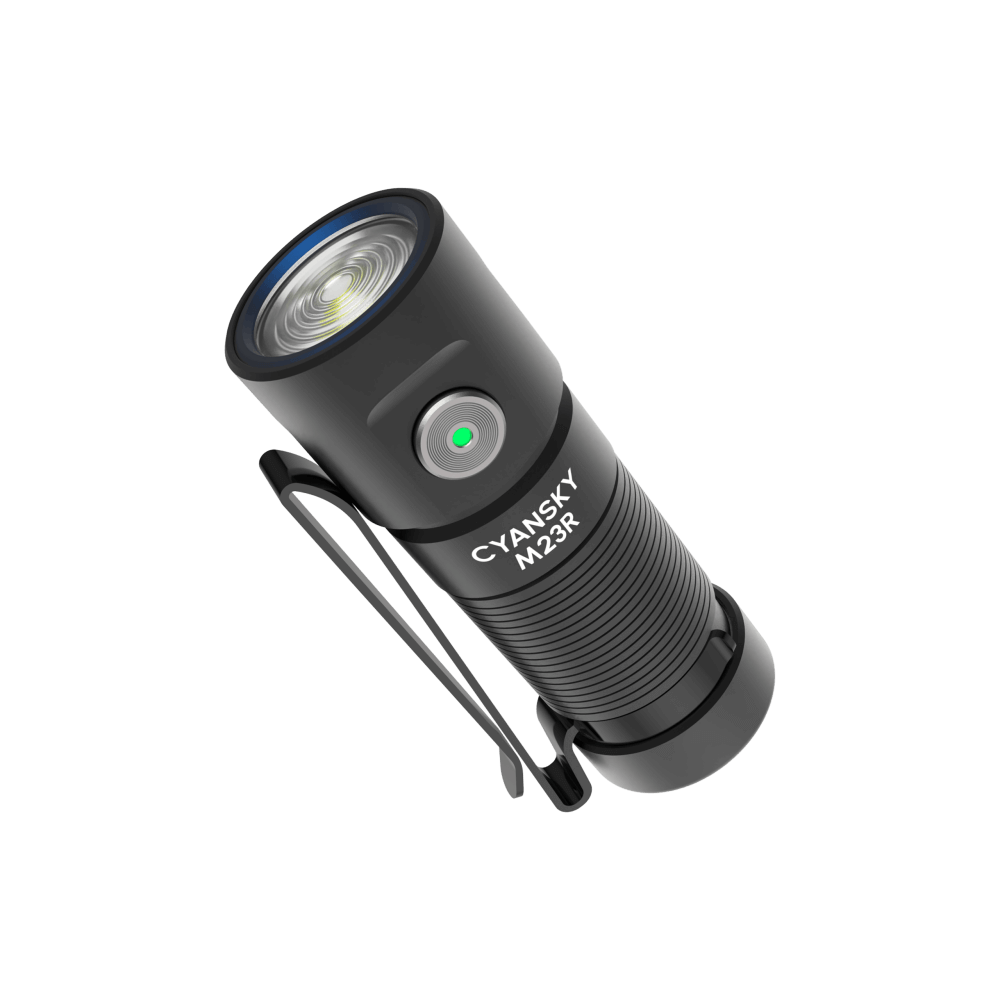

Brief Introduction

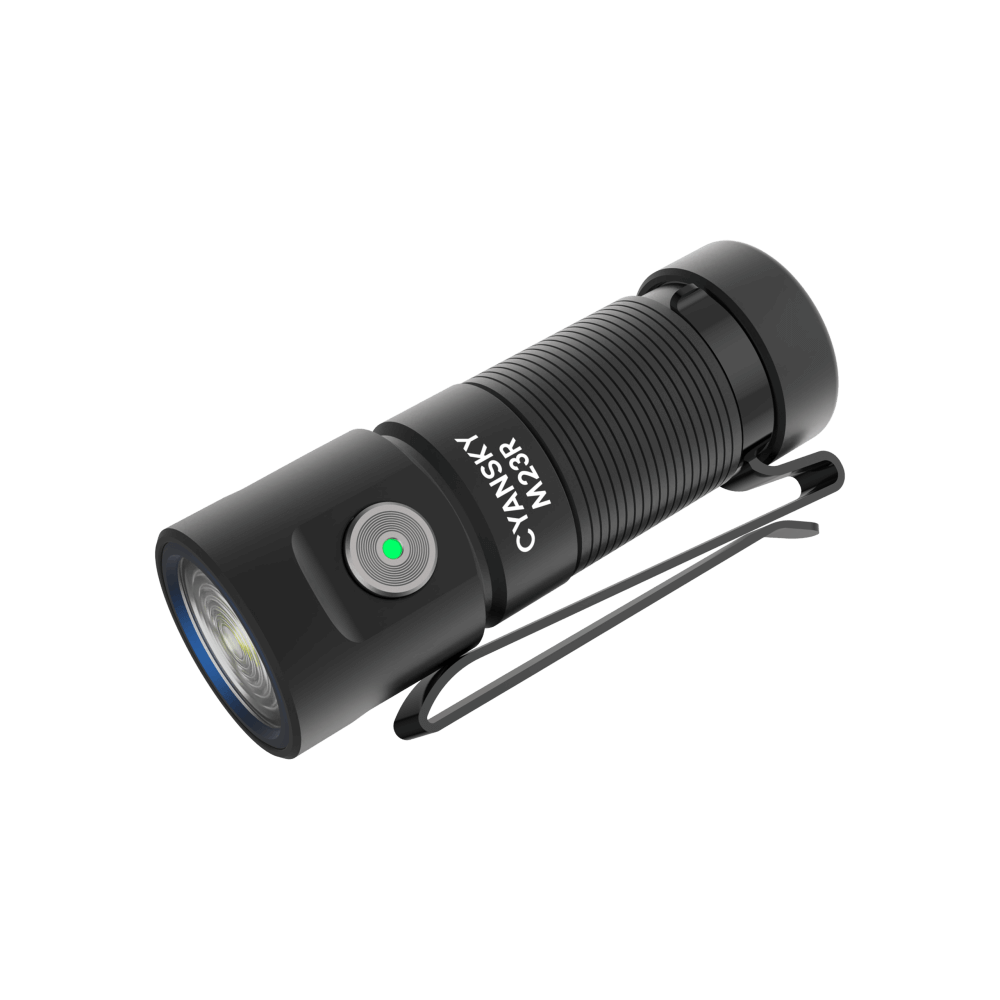

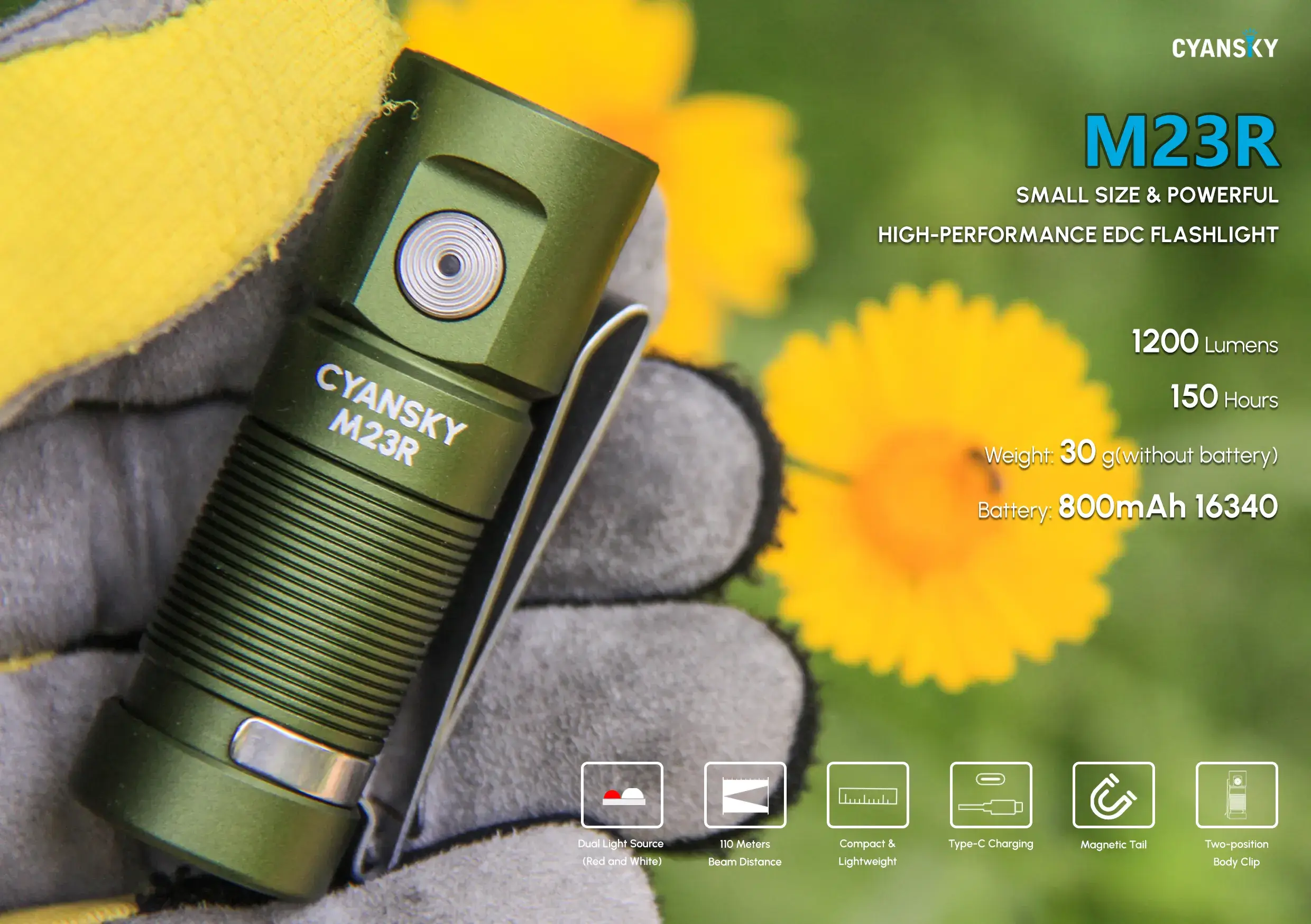

The M23R is a compact yet powerful everyday carry (EDC) rechargeable flashlight designed for users who demand both performance and portability. Despite its ultra-compact form, it delivers a powerful 1200-lumen beam with a throw of up to 110 meters and an ultra-long runtime of up to 150 hours. Designed with both white and red lighting modes, it’s versatile enough to adapt to different environments and purposes.
Unlike many mini flashlights with built-in batteries, the M23R is powered by a replaceable 800mAh 16340 lithium battery and is also compatible with CR123 batteries, offering flexibility and convenience for extended use.
The M23R also features multiple color options to suit personal style, and a magnetic tail cap for convenient hands-free use in workspaces or during repairs. Whether for daily use or outdoor adventures, the M23R is your reliable and stylish lighting companion.
Main Features
☑️ Powerful Yet Compact

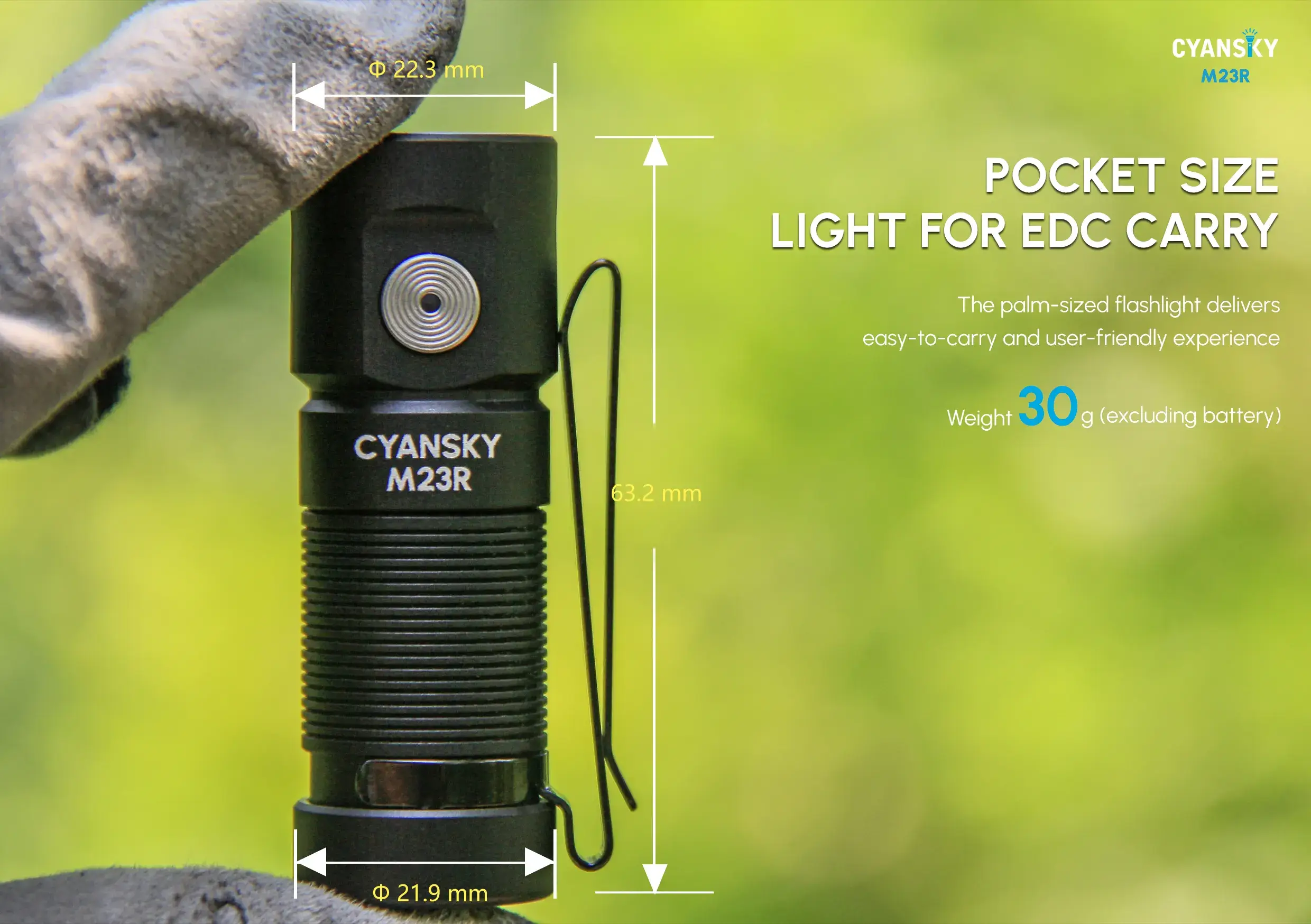

Delivers up to 1200 lumens with a 110m beam distance in a body just over 6 cm long and 30g light (excluding battery).

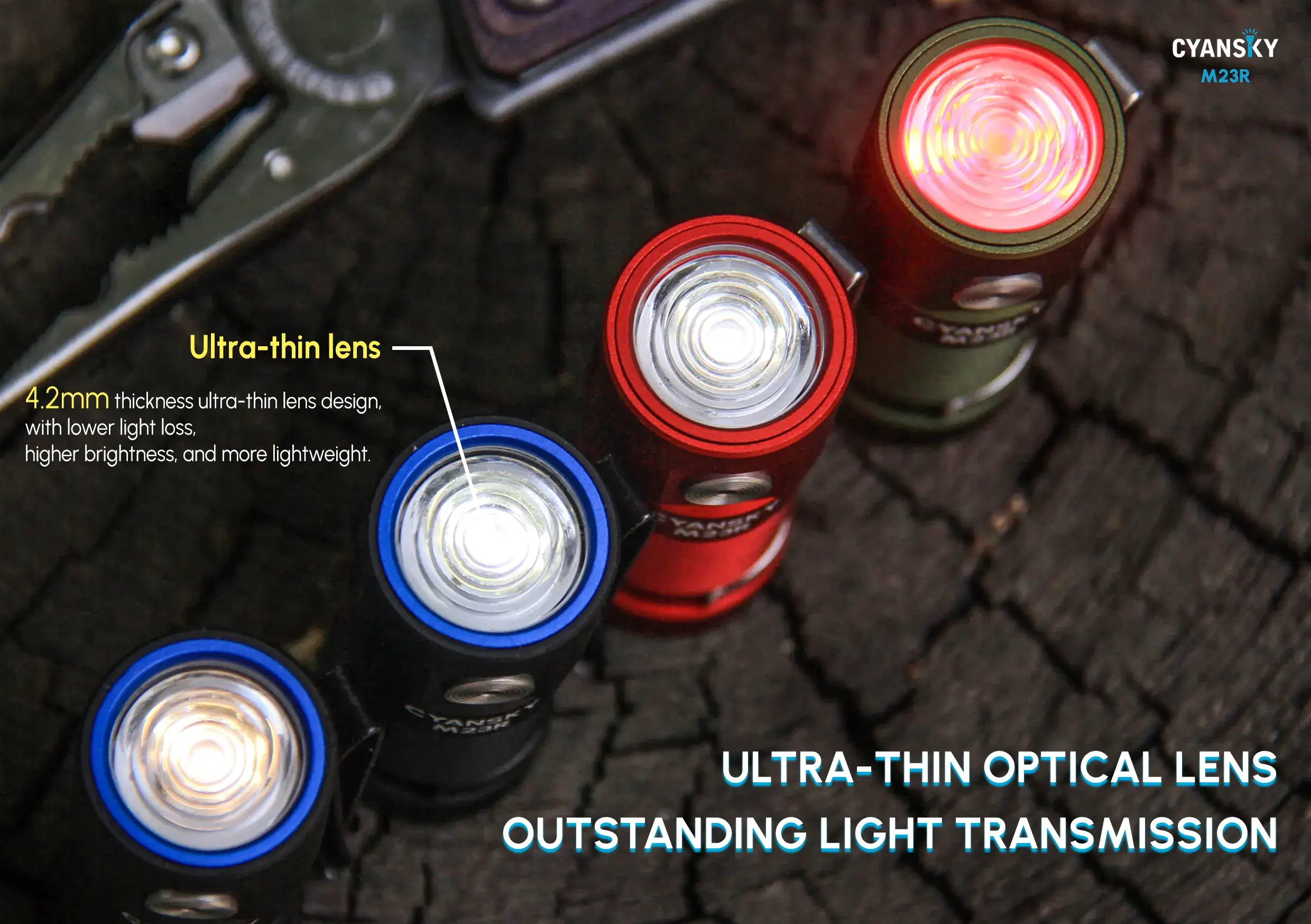

☑️ Dual Light Modes: White + Red
Switch easily between white light for visibility and red light for preserving night vision or signaling in emergencies.
☑️ Replaceable Battery for Flexibility

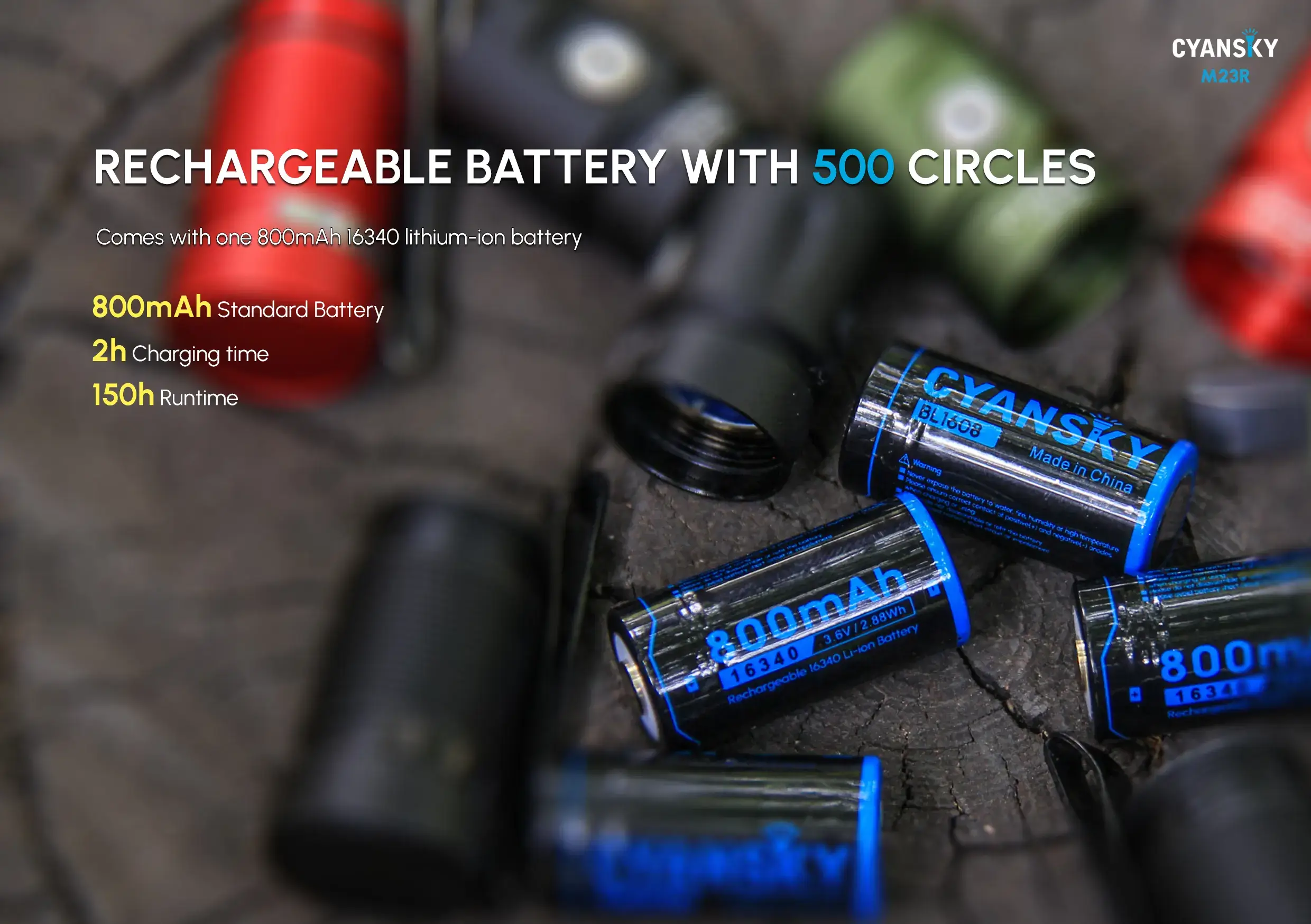

Powered by a single 800mAh 16340 rechargeable battery - unlike most mini flashlights, the battery is replaceable and also compatible with CR123 cells for added convenience and reliability.
☑️ Ultra-Long Runtime
Up to 150 hours of continuous use - no frequent recharging needed.

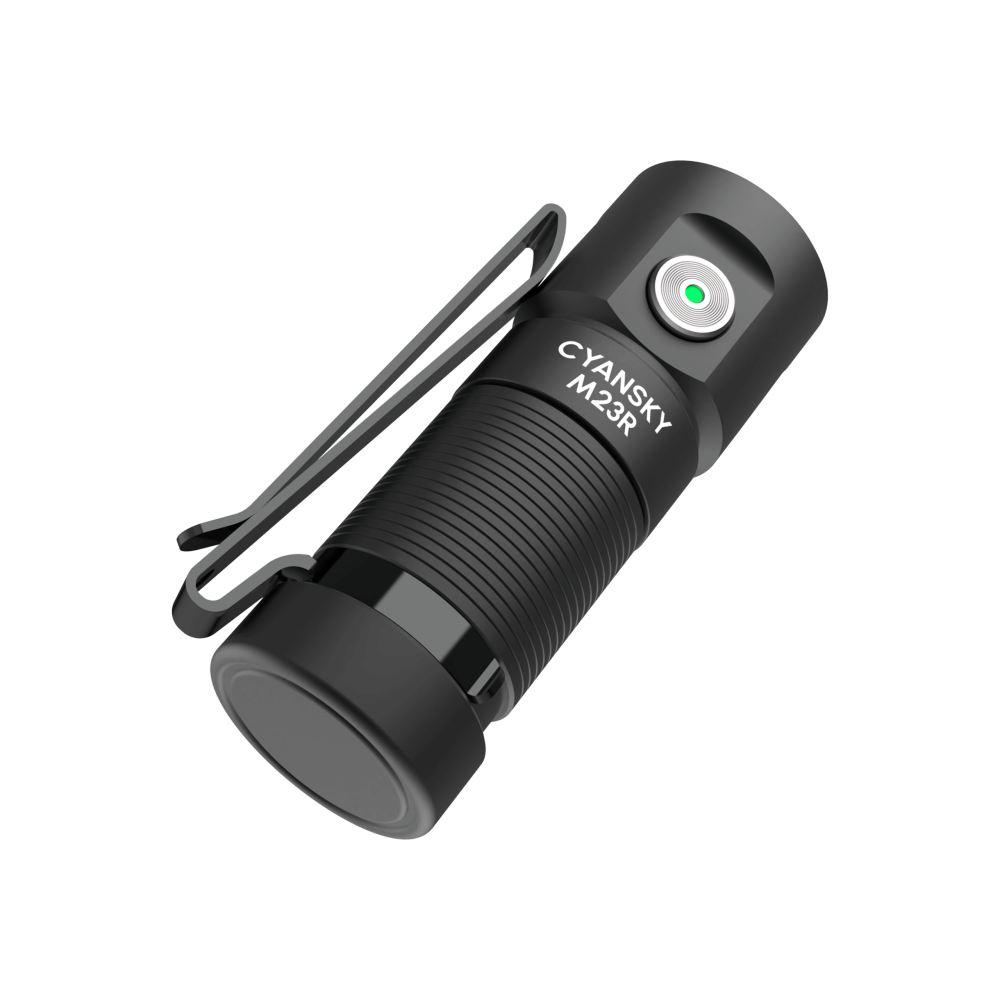

☑️ Magnetic Tail Cap
Attach to metal surfaces for hands-free lighting, ideal for repairs, workstations, or tent lighting.

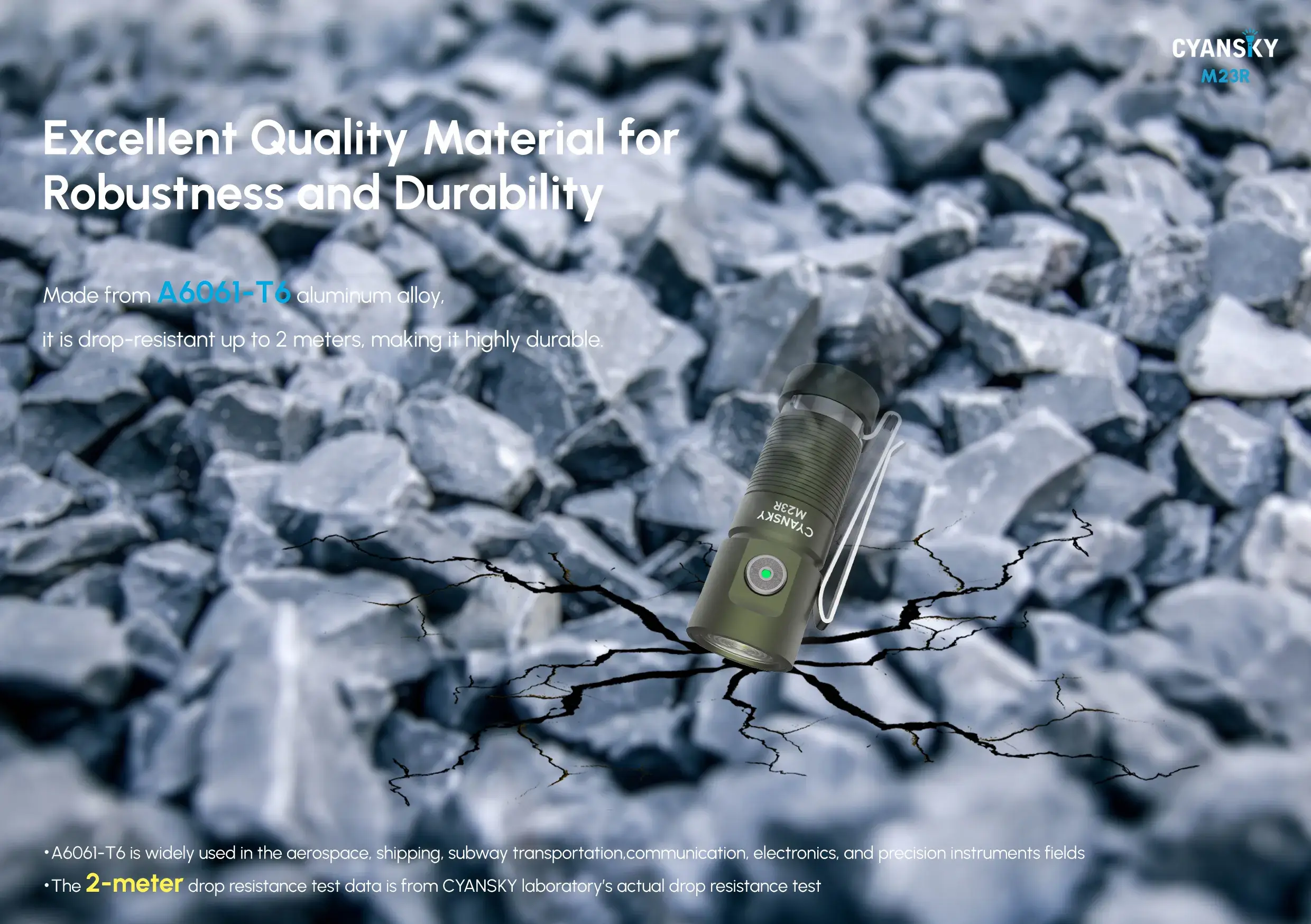

| Material: | Aero grade aluminum |
| Surface Finish: | HAIII hard-anodized anti-abrasive finish |

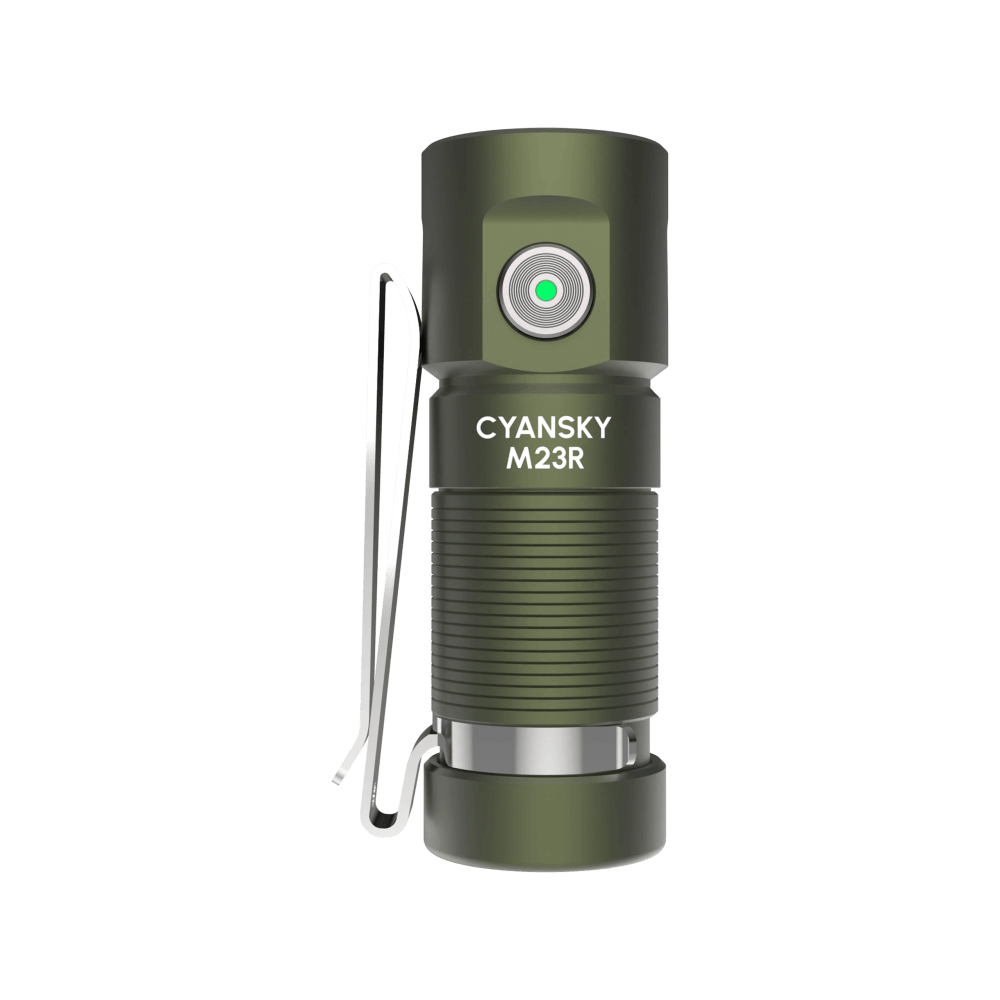

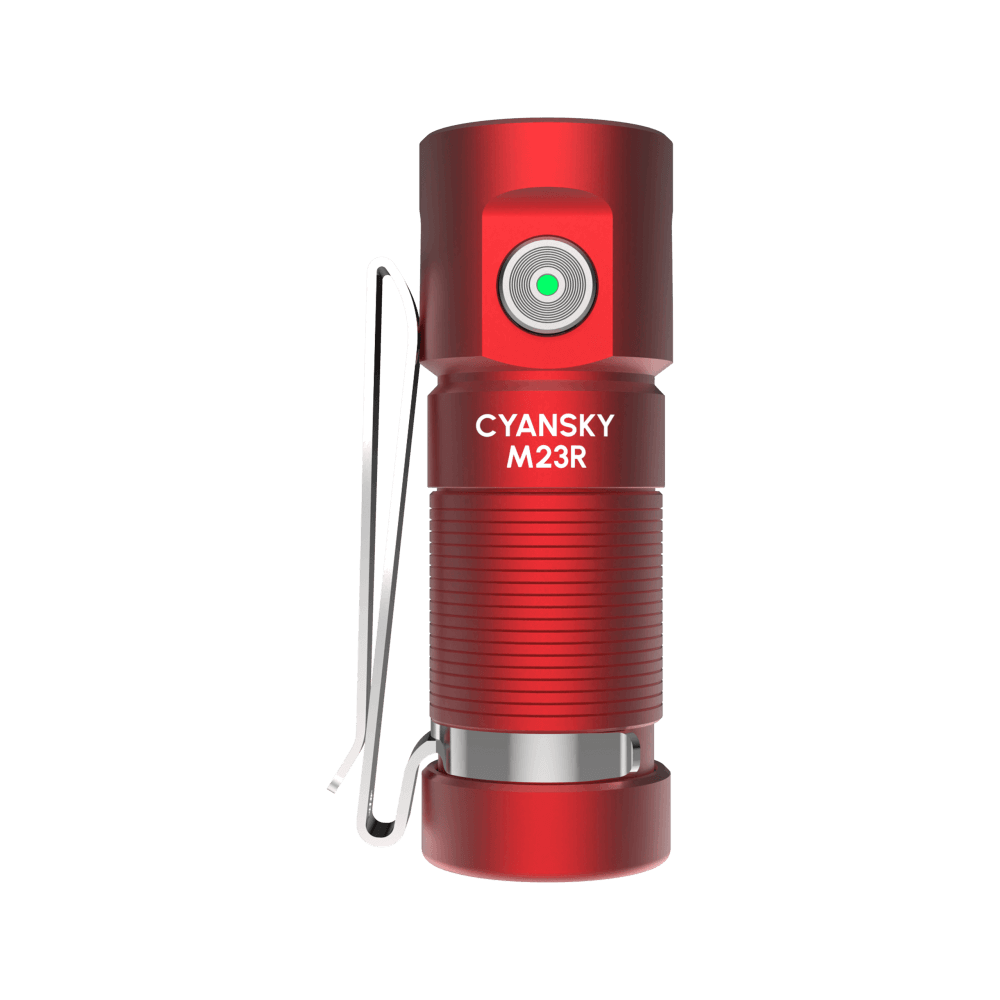

| Color: | Black/Green/Red |
| Weight: |
30g/1oz (excluding battery)
|
| Size: | 63.2*22.3*21.9 mm |
| Battery: | 1*800mAh 16340 (included) or 1*CR123 |
| LED: | 3 LEDs - 1*White, 2*Red |
| Max Runtime: | 150 hours |
| Max Beam Intensity: | 3025 cd |

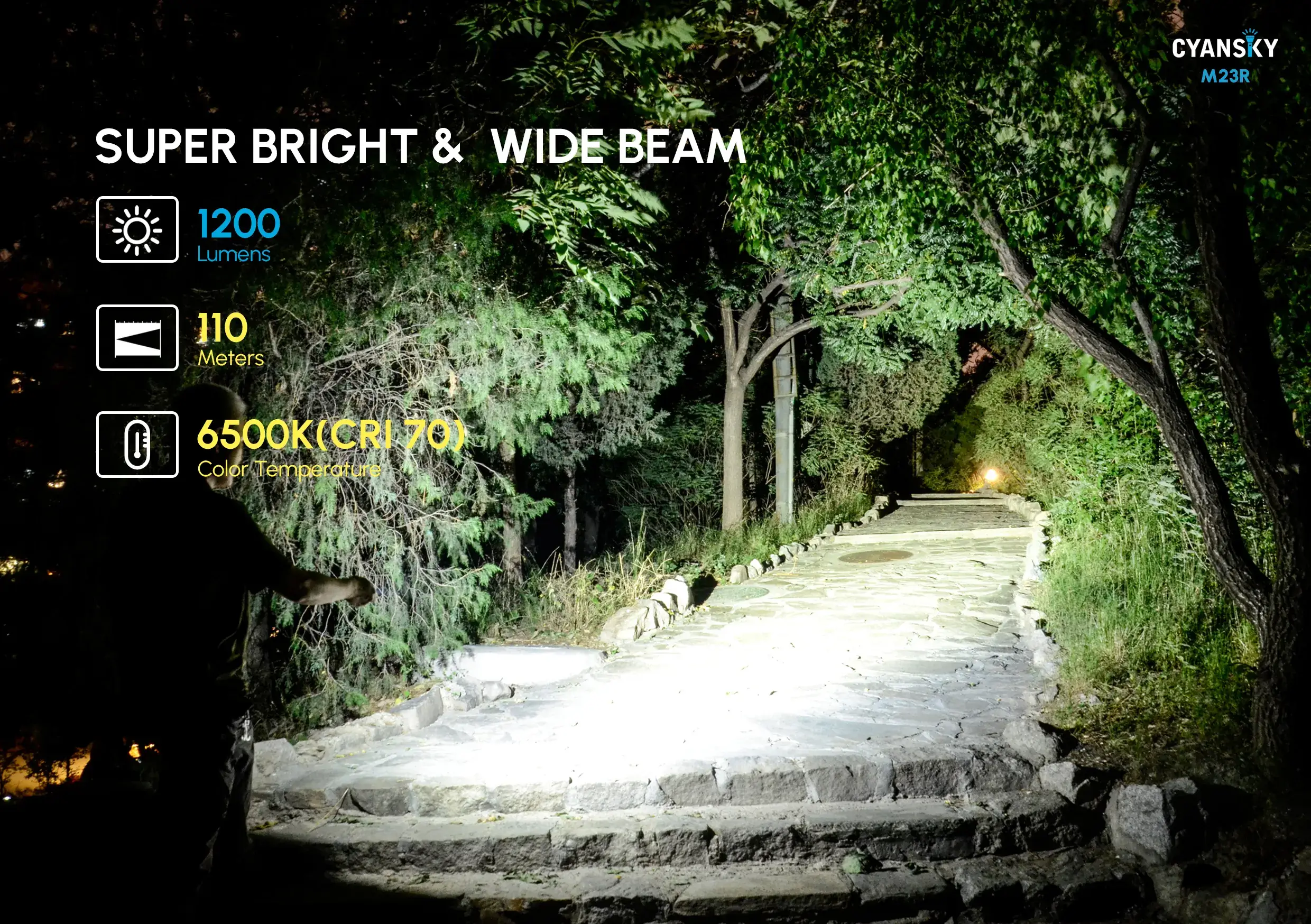

| Max Beam Distance: | 110 meters/360 feet |
| Max Output: | 1200 Lumens |
| Switch: | Single Top Switch |
| Lighting Color: | White, red |
| Mode: | 9 modes |
| Charging Way: | USB TYPE-C Rechargeable |
| Working Temperature: | -30℃ to 55℃ |
| Waterproof Rating: | IPX-8 (2 meters underwater) |
| Impact Resistant Rating: | 2m |
| Warranty: | 5-year free warranty and through-life warranty support |

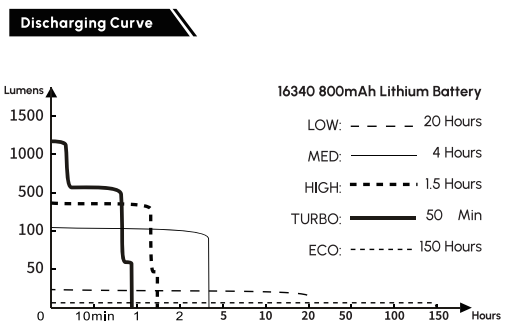

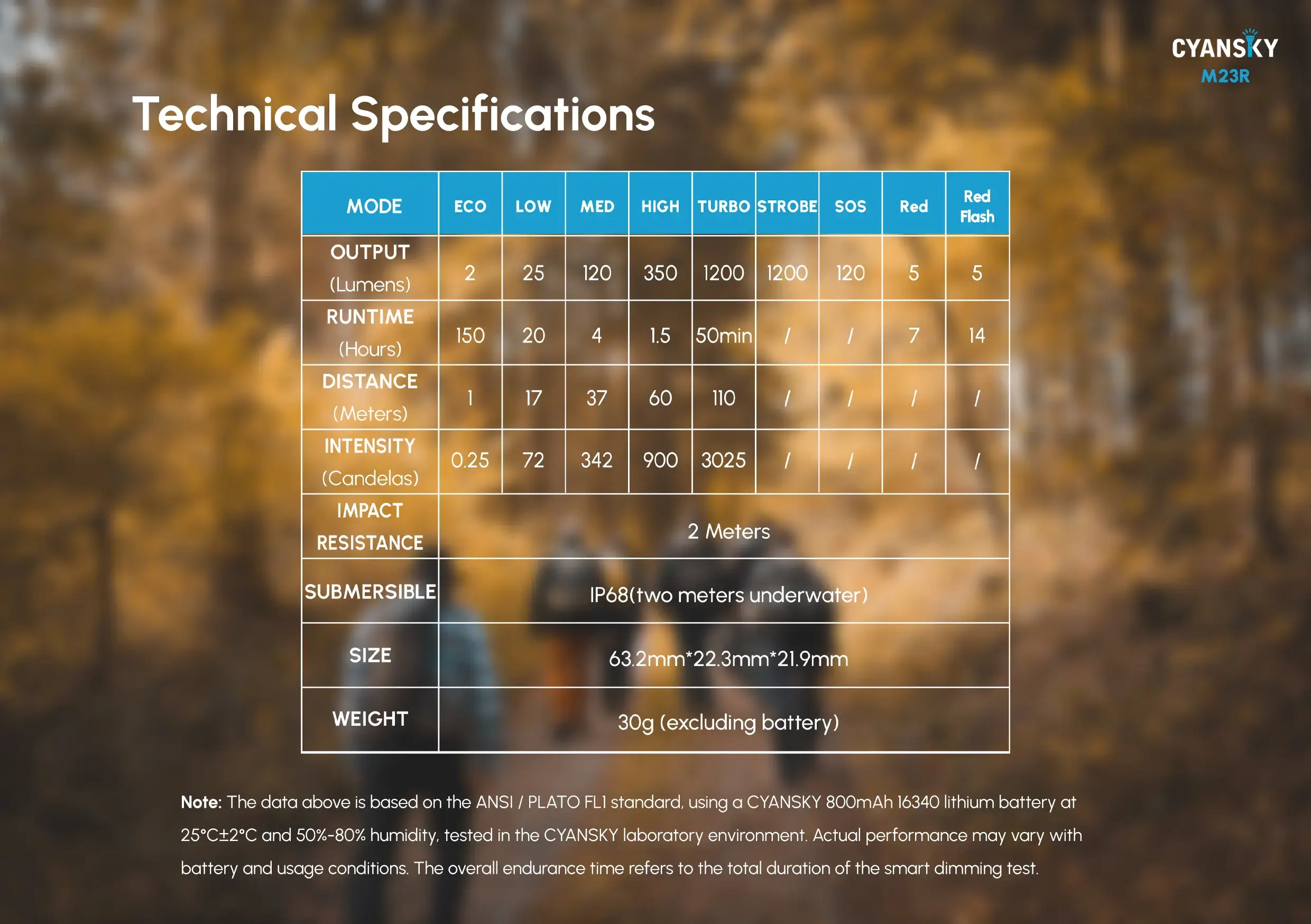

| Turbo | High | Med | Low | Eco | Strobe | SOS | Red | Red Flash | |
| Output (Lumens) | 1200 | 350 | 120 | 25 | 2 | 1200 | 120 | 5 | 5 |
| Runtime (Hours) | 50 minutes | 1.5 | 4 | 20 | 150 | / | / | 7 | 14 |
| Distance (Meters) | 110 | 60 | 37 | 17 | 1 | / | / | / | / |
| Intensity (Candelas) | 3025 | 900 | 342 | 72 | 0.25 | / | / | / | / |
| Impact Resistance | 2m | ||||||||
| Waterproof | IPX8 | ||||||||
| Size | 63.2*22.3*21.9 mm | ||||||||
| Weight | 30g/1oz (excluding battery) | ||||||||
| Working Temperature | 30℃ to 55℃ | ||||||||
What's Included in the Package
☑️ 1* Mini Rechargeable Flashlight M23R with 1*800Ah 16340 battery
☑️ 1* TYPE-C charging cable
☑️ 1* Lanyard
☑️ 1* Warranty Card
☑️ 1* User Manual
Optional Accessories
☑️ None

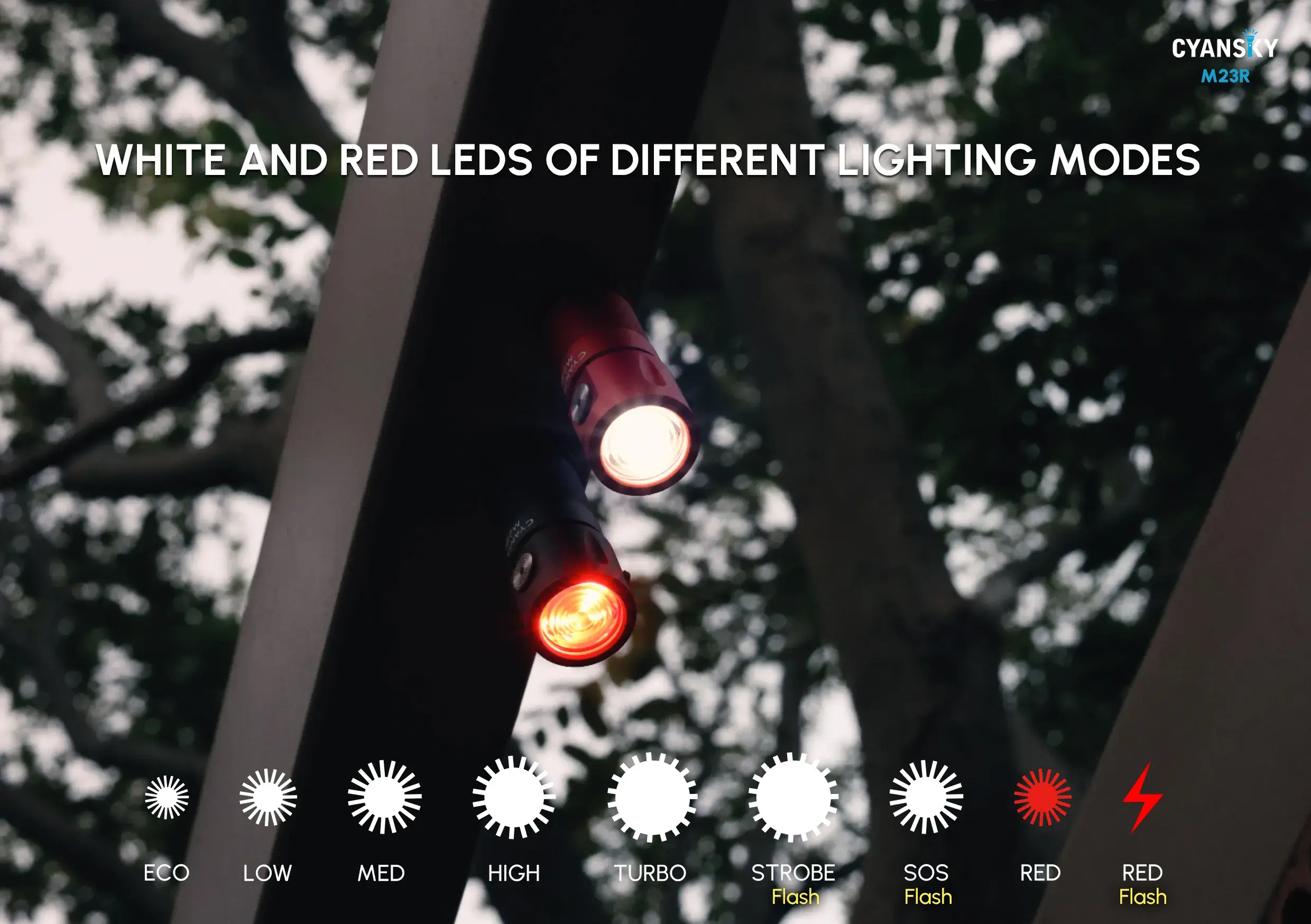

Q1: How many modes does the small flashlight M23R have?
A: M23R has 9 outputs and 2 lighting colors - white (Turbo, high, med, low, eco, strobe, SOS), and red (on, flicker).
Q2: What is the purpose of red lighting on the flat flashlight M23R?
A: Human eyes adjust faster to red lighting than white when transitioning from darkness to light. Thus, red lighting is helpful to preserve night vision and protect eyes. Also, it can avoid waking up your companion and allow yourself to fall asleep fast after getting up in the middle of the night. Red lighting is also helpful to make you more visible when you need help in an emergency. Another benefit of red lighting is pest control. Red lighting would help you keep away from mosquitoes.
Q3: Is the battery replaceable or built-in?
A: The M23R uses a replaceable 800mAh 16340 rechargeable battery - a big advantage over most mini flashlights with built-in batteries. It’s also compatible with one CR123 battery, so you can easily find a backup power source when needed.Q4: Can I use it hands-free when doing repairs or working in tight spaces?
A: Yes, the M23R features a magnetic tail cap that allows you to attach it to any metal surface - perfect for hands-free lighting during repairs, car work, or when setting up a tent.
Q5: Which output will the mini powerful flashlight go to when it’s turned on?
A: M23R has a memory function. Each time you turn on the light, it will go to the last working output for your convenience.
Q6: Is the tiny flashlight M23R easily turned on by accident in my pocket or bag?
A: To avoid being turned on by accident, M23R features a lockout function. With the light off, double-click the switch, and the light will blink twice to lock. Double-click the switch again, and the light will be unlocked for normal use.

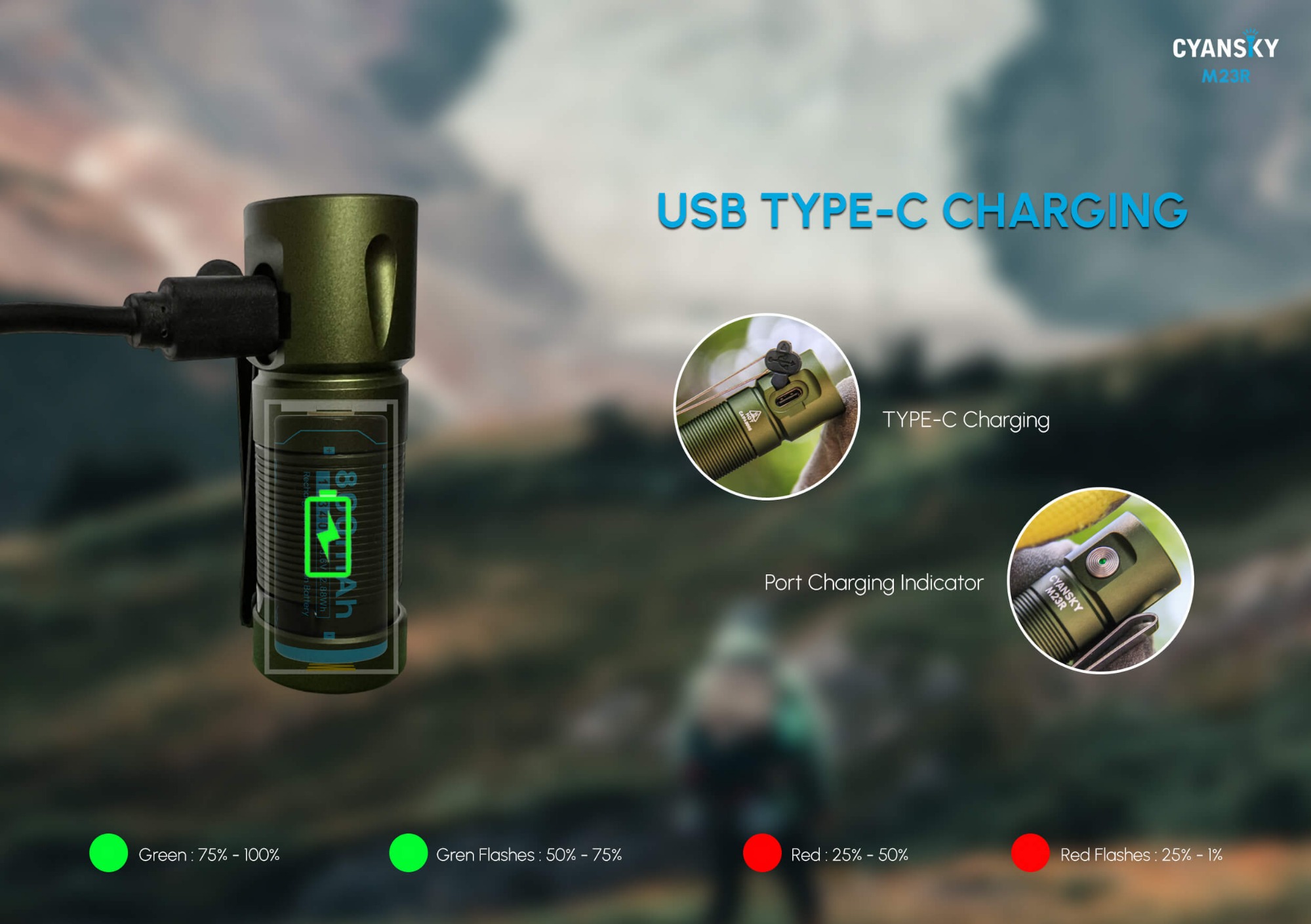

Q7: How can I know the remaining power level?
A: For users’ convenience, M23R features a Dynamic Real-Time Battery Level Monitor System, which allows users to know the power level at any time.
With the light off, single-click the switch to check the power status.
Green constant on: Battery >75%;
Green blinking: Battery 50%-75%;
Red constant on: Battery 25%-50%;
Red blinking: Battery <25%.
When the light is on, the battery level indicator will blink in red to remind you of charging in case the power is low.
Q8: How long can the mini torch M23R be fully charged?
A: 2 hours.
Q9: Why can’t I turn my flashlight on?
A: Firstly, please check if the light has been in a lockout. Secondly, please ensure the light has enough power.
