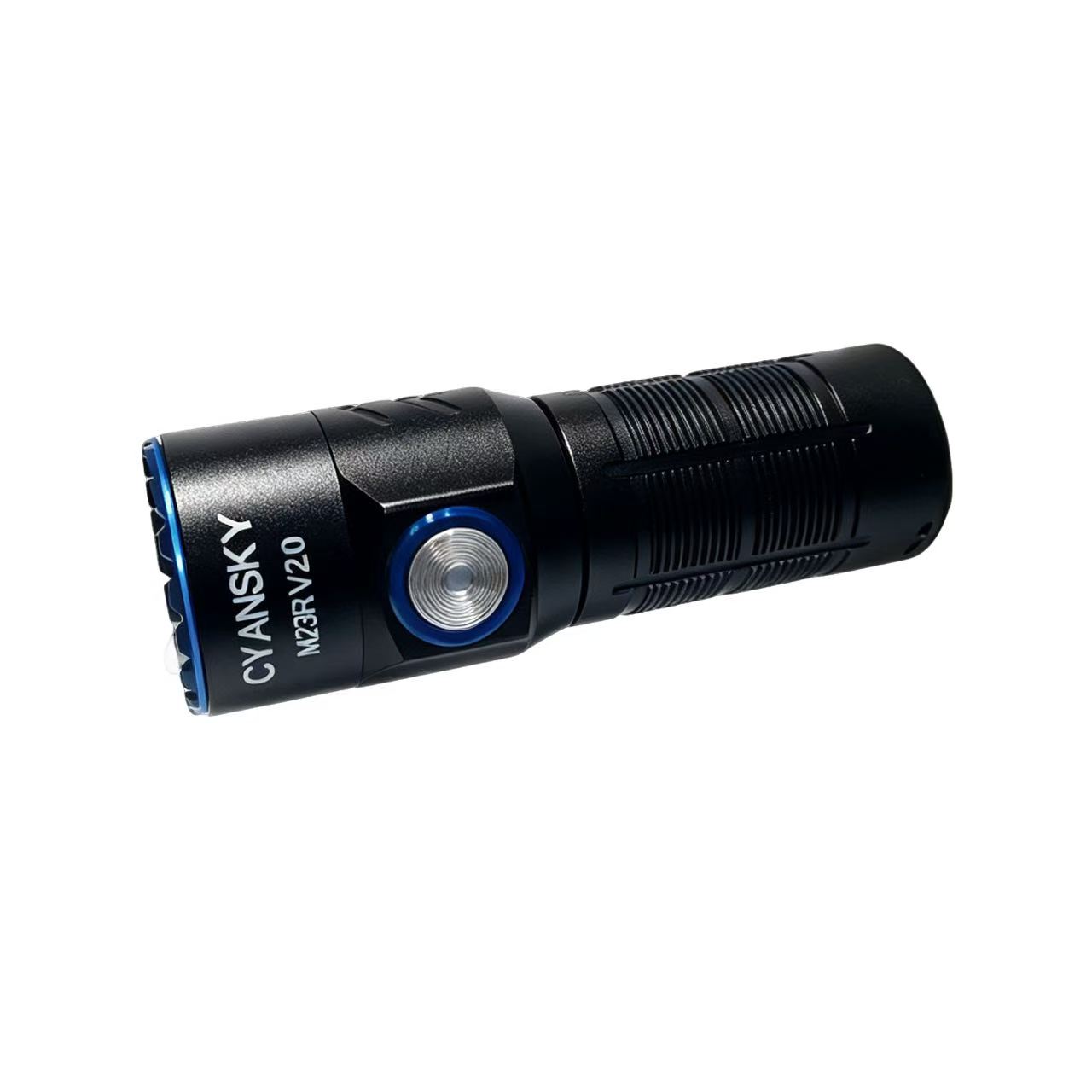

Brief Introduction
Long-range performance doesn’t have to come from a large flashlight.
The M23R V2 combines an impressive 510m beam distance with a body weighing only 40g, delivering the reach of a much larger flashlight in a genuinely compact, palm-sized format.
With up to 1,000 lumens, up to 48 hours of runtime, USB-C charging and a removable Li-ion battery, the M23R V2 is designed for users who need serious long-distance visibility without carrying a bulky search light.
Its compact size also makes it easy to carry in a pocket or integrate into helmet-mounted setups, making it well suited to search, outdoor activities, long-distance observation and professional applications.
510m throw. 40g body. Long-range capability without the bulk.
Main Features

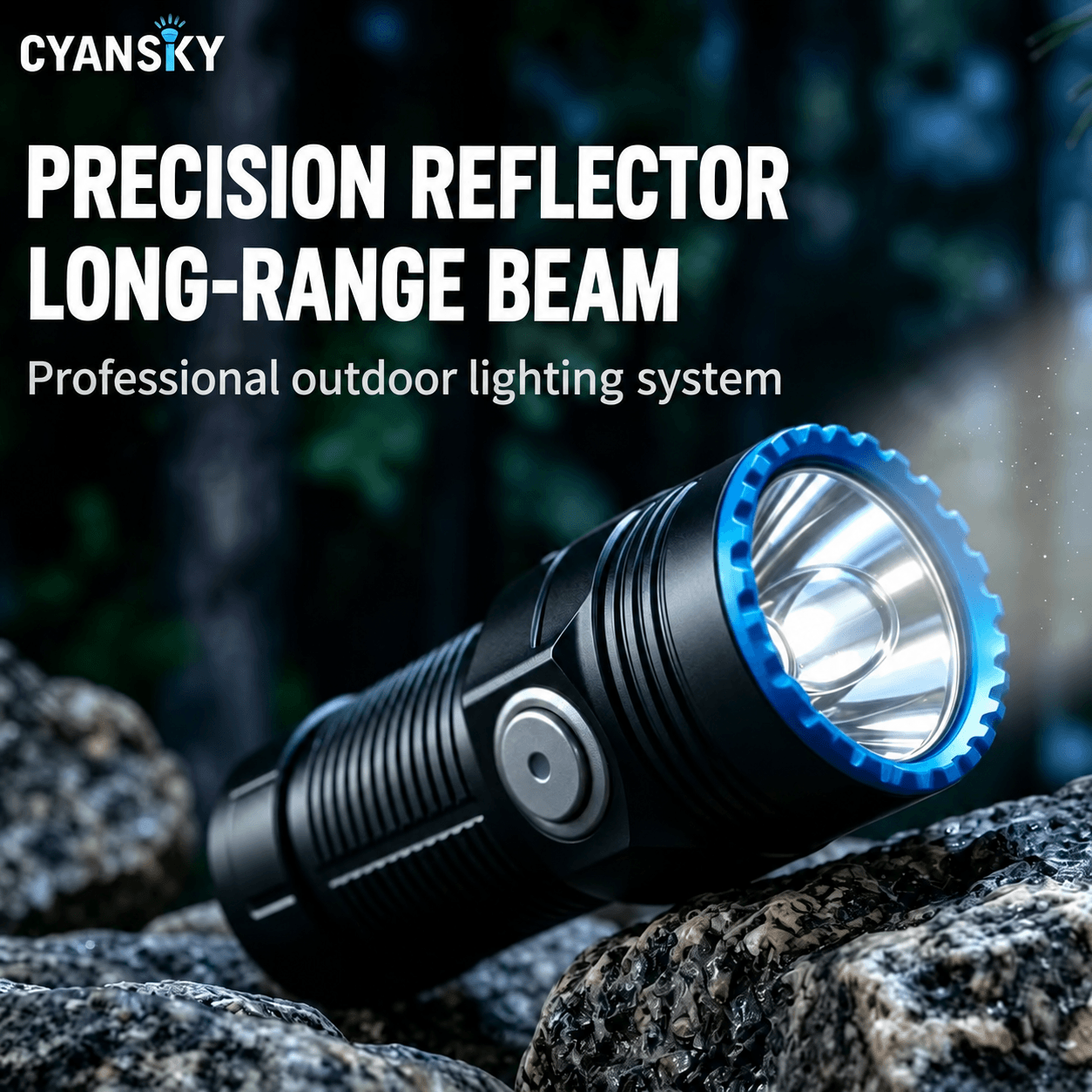

☑️ 510m Long-Range Throw
Delivers impressive long-distance visibility from an exceptionally compact body.
☑️ Ultra-Lightweight — Only 40g
Extremely lightweight for easy pocket carry, helmet mounting and extended use.
☑️ Palm-Sized Design
Serious long-range capability without the size and bulk of a conventional search light.
☑️ Up to 1,000 Lumens
Powerful output in a compact form for outdoor, search and professional applications.
☑️ Up to 48 Hours Runtime
Extended runtime provides reliable illumination for longer outdoor and field use.

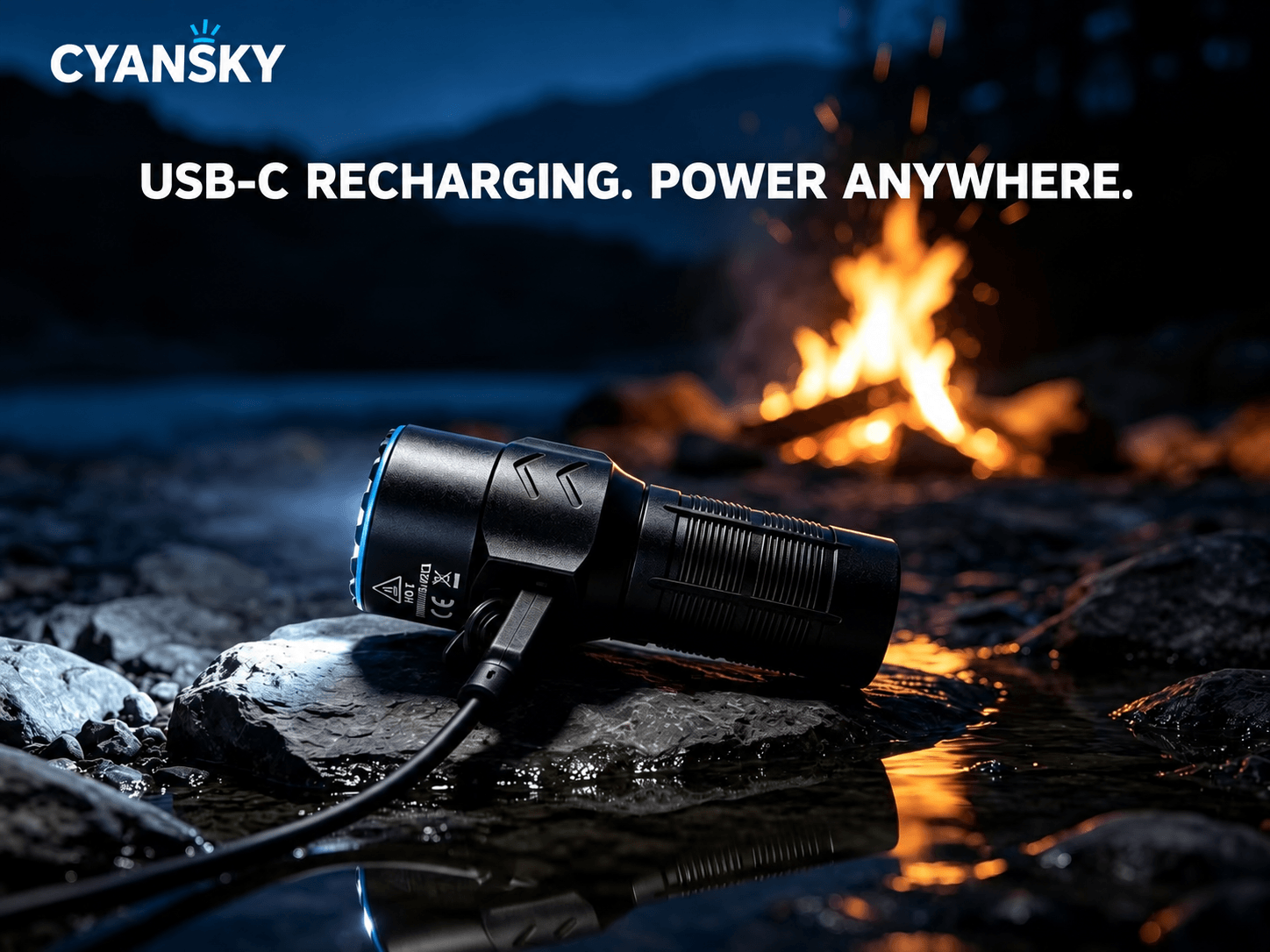

☑️ USB-C Rechargeable

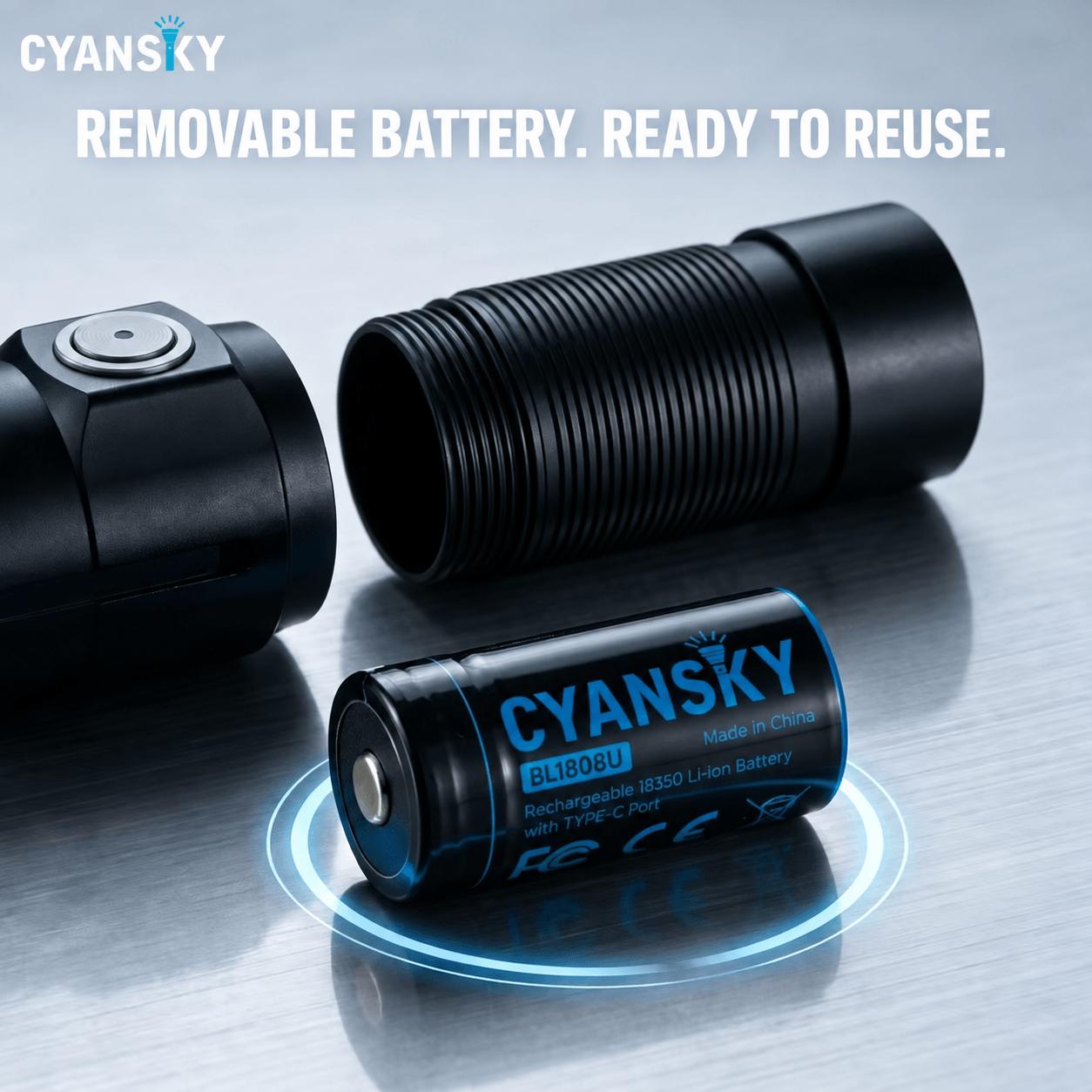

Convenient USB-C charging with a removable Li-ion battery for practical everyday use.
☑️ Helmet-Mount Compatible
Compact and lightweight for helmet-mounted use with an optional helmet mount (sold separately).

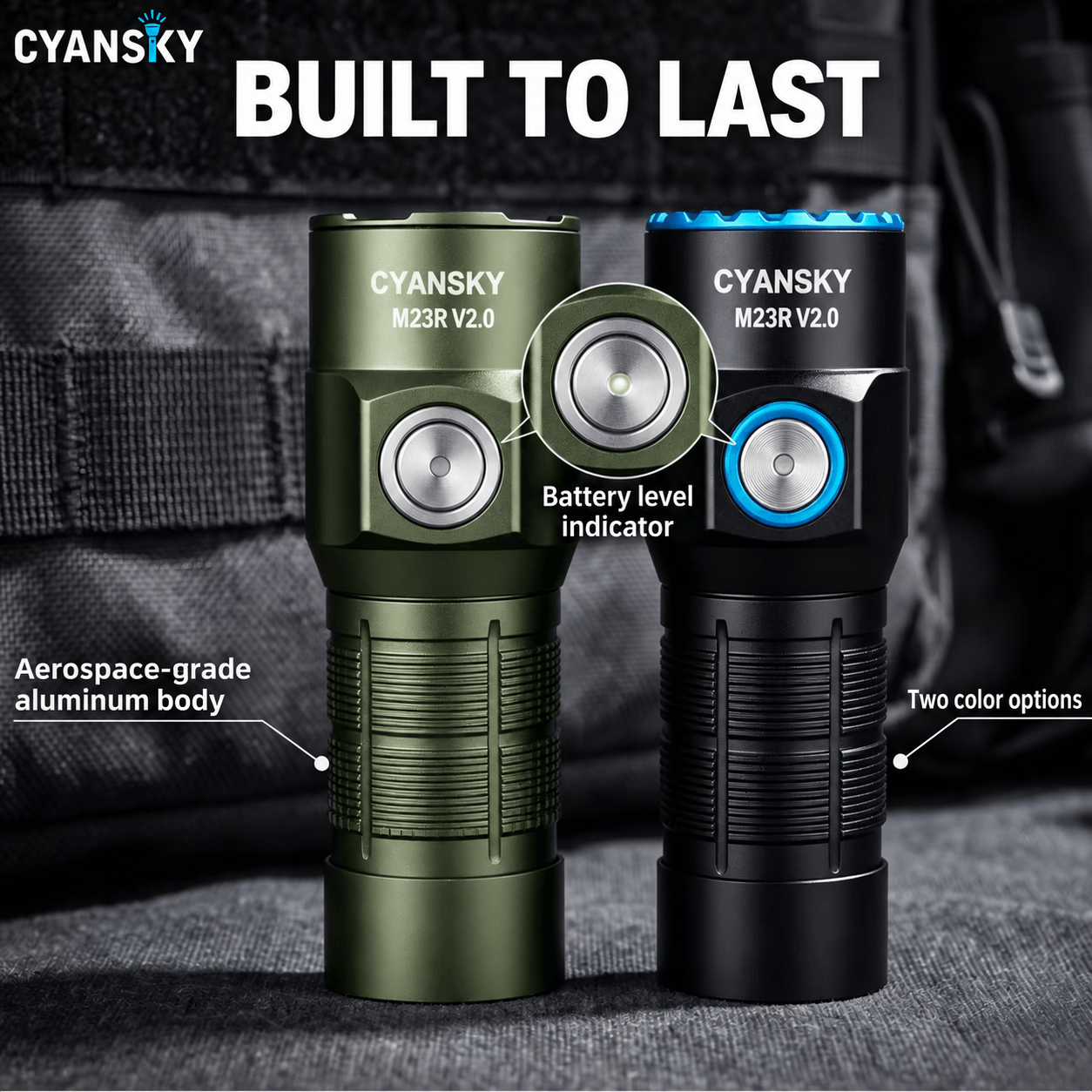

| Material: | Aero grade aluminum |
| Surface Finish: | HAIII hard-anodized anti-abrasive finish |

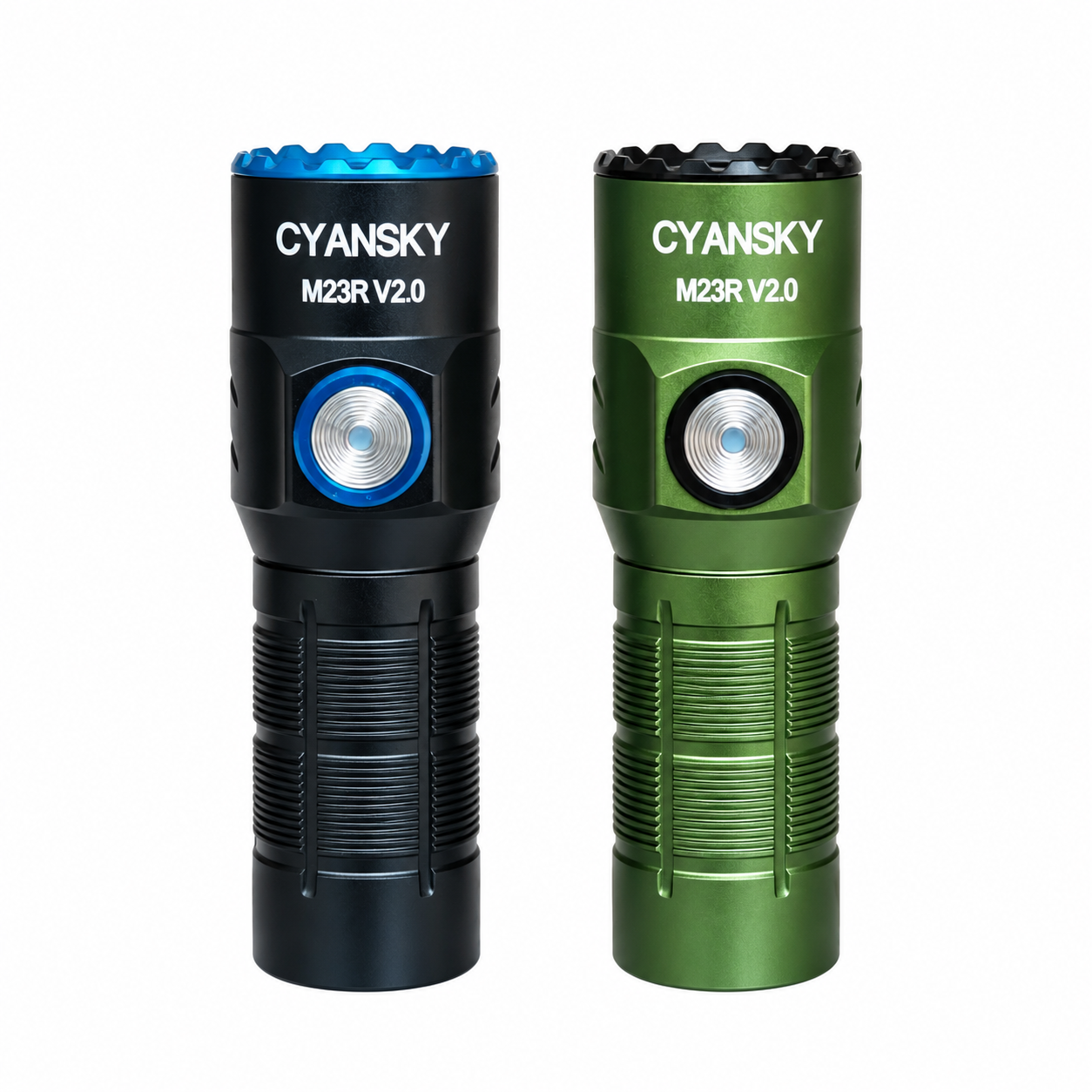

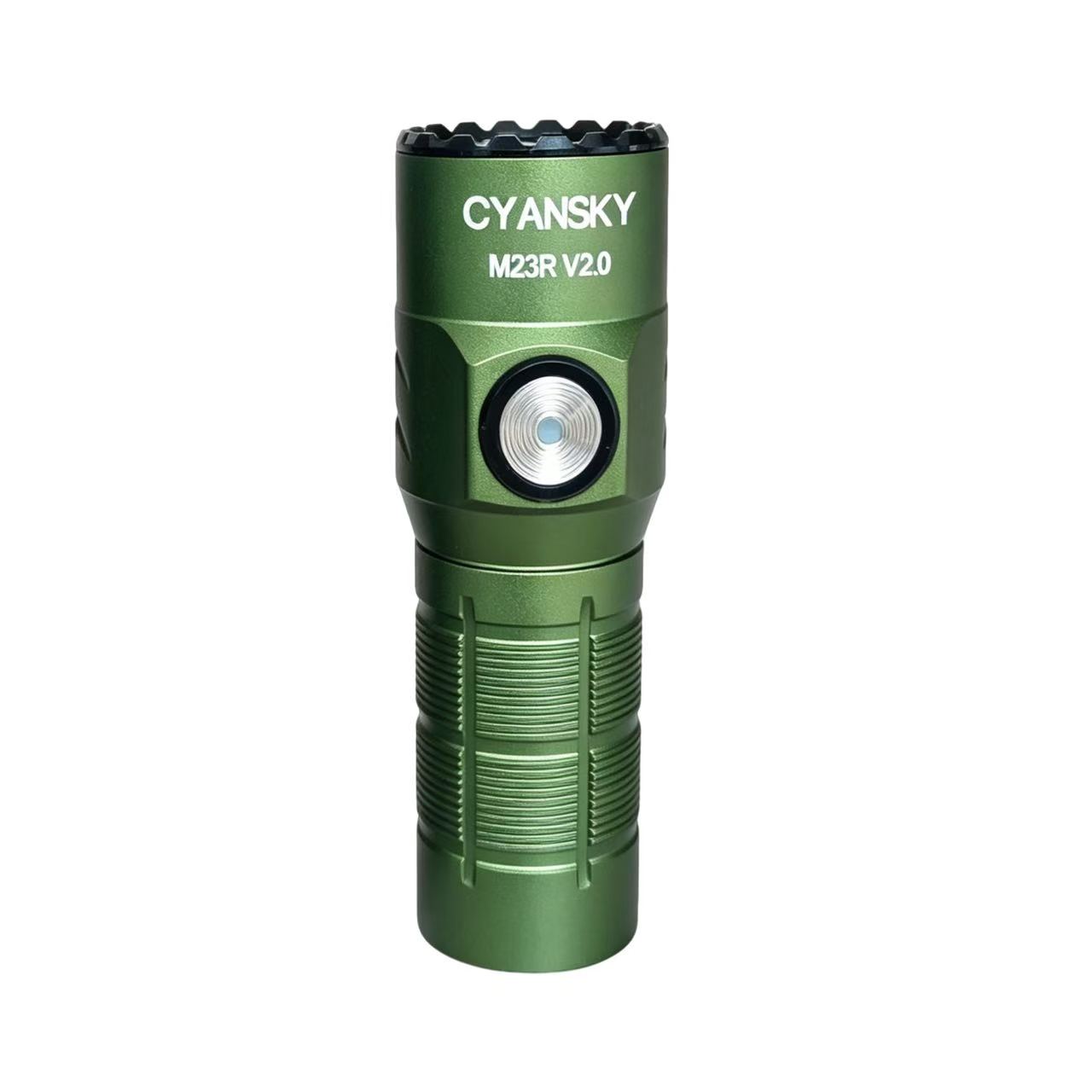

| Color: | Black/Green |
| Weight: |
40g/1.28oz (excluding battery)
|
| Size: | 72*25*22 mm |
| Battery: | 1*1000mAh 18350 (included) |
| LED: | 1*White LED |
| Max Runtime: | 48 hours |
| Max Beam Intensity: | 65300 cd |
| Max Beam Distance: | 510 meters/1673 feet |
| Max Output: | 1000 Lumens |
| Switch: | Single Top Switch |
| Lighting Color: | White |
| Mode: | 7 modes |
| Charging Way: | USB TYPE-C Rechargeable |
| Working Temperature: | -30℃ to 55℃ |
| Waterproof Rating: | IPX-8 (2 meters underwater) |
| Impact Resistant Rating: | 2m |
| Warranty: | 5-year free warranty and through-life warranty support |

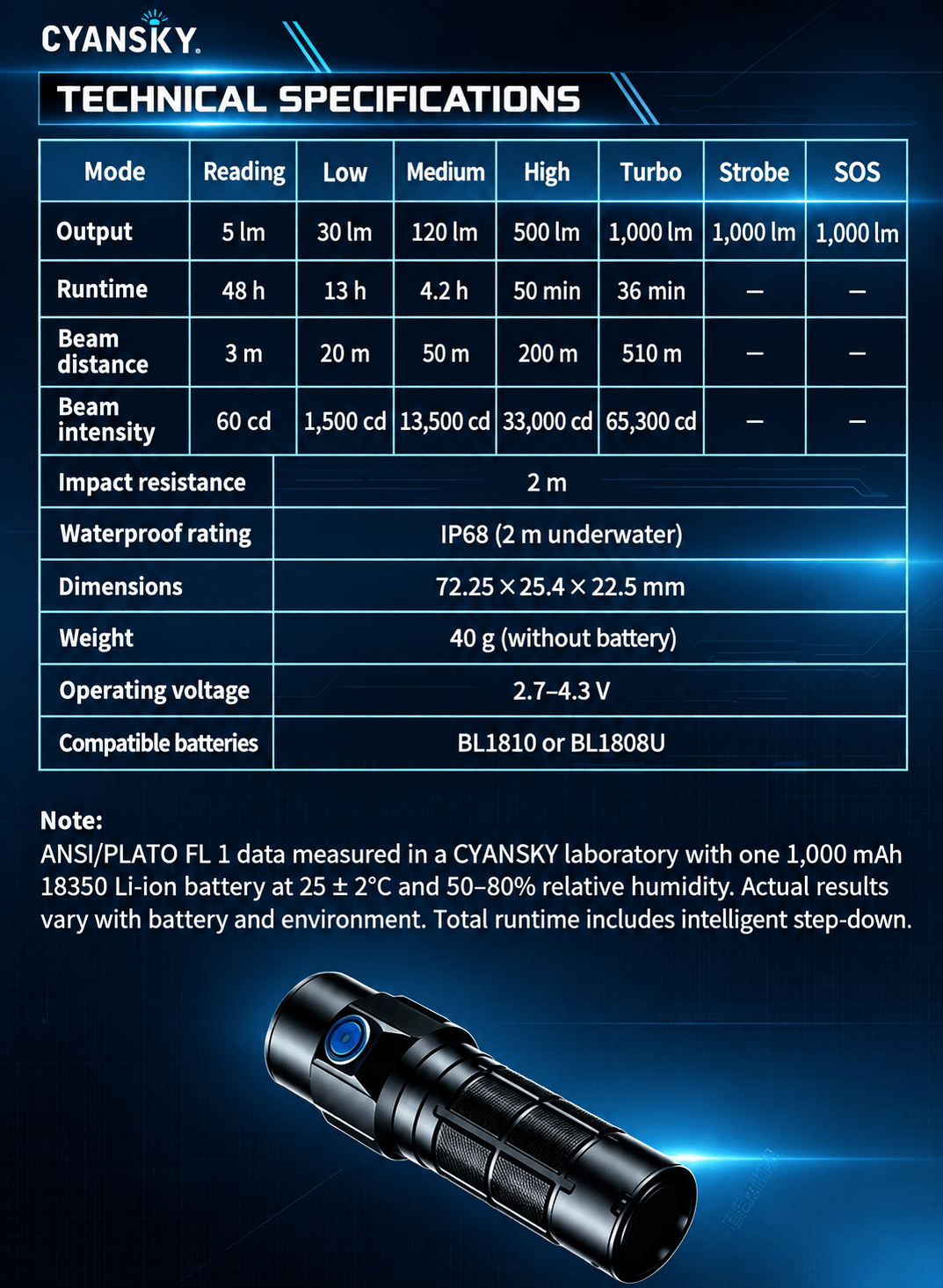

| Turbo | High | Med | Low | Eco | Strobe | SOS | |
| Output (Lumens) | 1000 | 500 | 120 | 30 | 5 | 1000 | 1000 |
| Runtime (Hours) | 36 minutes | 50 minutes | 4.2 | 13 | 48 | / | / |
| Distance (Meters) | 510 | 200 | 50 | 20 | 3 | / | / |
| Intensity (Candelas) | 65300 | 33000 | 13500 | 1500 | 60 | / | / |
| Impact Resistance | 2m | ||||||
| Waterproof | IPX8 | ||||||
| Size | 63.2*22.3*21.9 mm | ||||||
| Weight | 40g/1.28oz (excluding battery) | ||||||
| Working Temperature | 30℃ to 55℃ | ||||||
Q1: How far can the M23R V2 flashlight reach?
The M23R V2 delivers a maximum beam distance of up to 510 meters, providing impressive long-range visibility from a palm-sized flashlight.
Q2: How bright is the M23R V2?
The M23R V2 delivers up to 1,000 lumens. Its key advantage is the combination of high output and a focused beam reaching up to 510 meters.

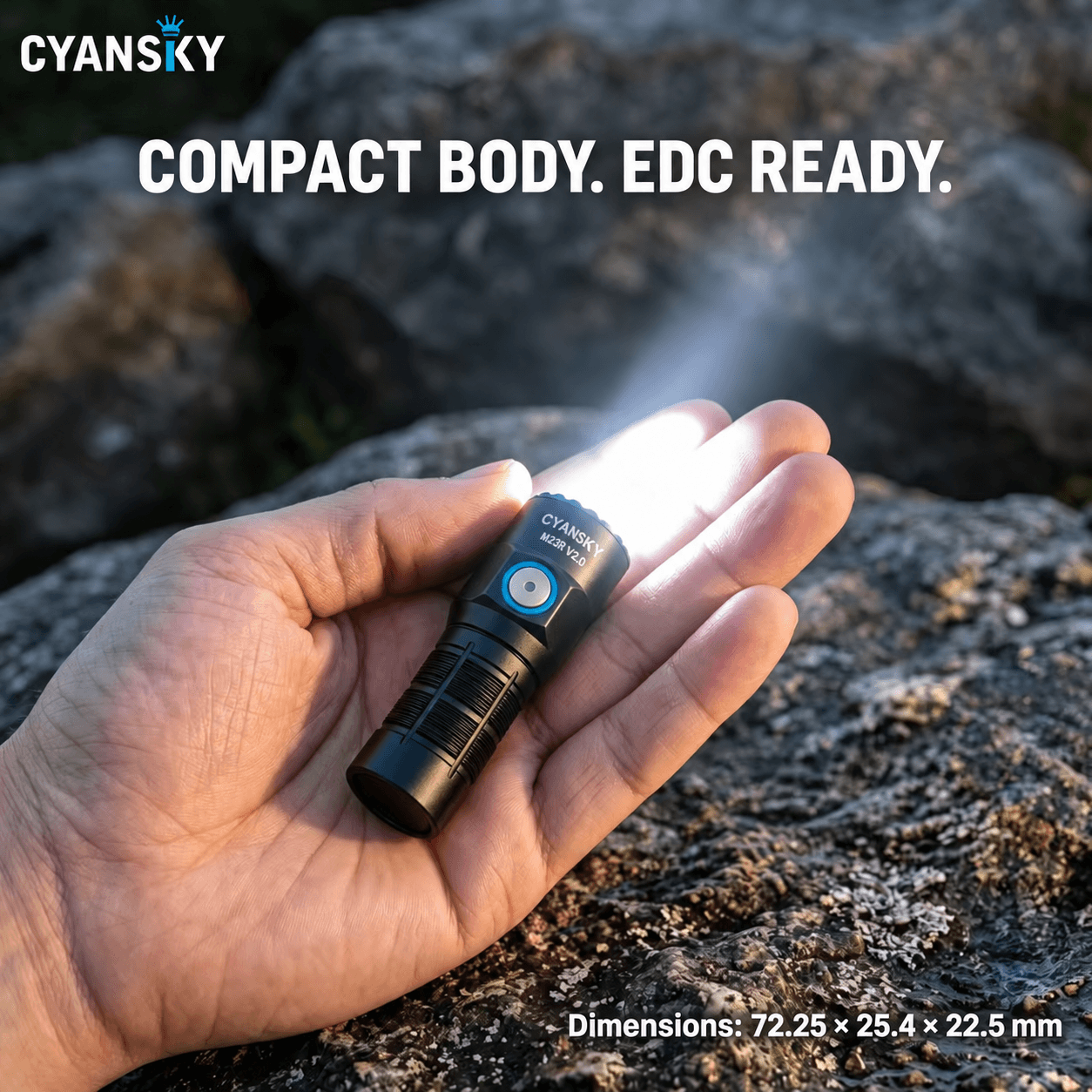

Q3: How small and lightweight is the M23R V2?
It measures approximately 72.25 × 25.4 × 22.5 mm and weighs only 29.8g without the battery, making it exceptionally compact for a long-range flashlight.
Q4: What is the M23R V2 best used for?
Its compact size and long-range beam make it well suited for search, outdoor activities, long-distance observation and professional use, especially when carrying size and weight matter.

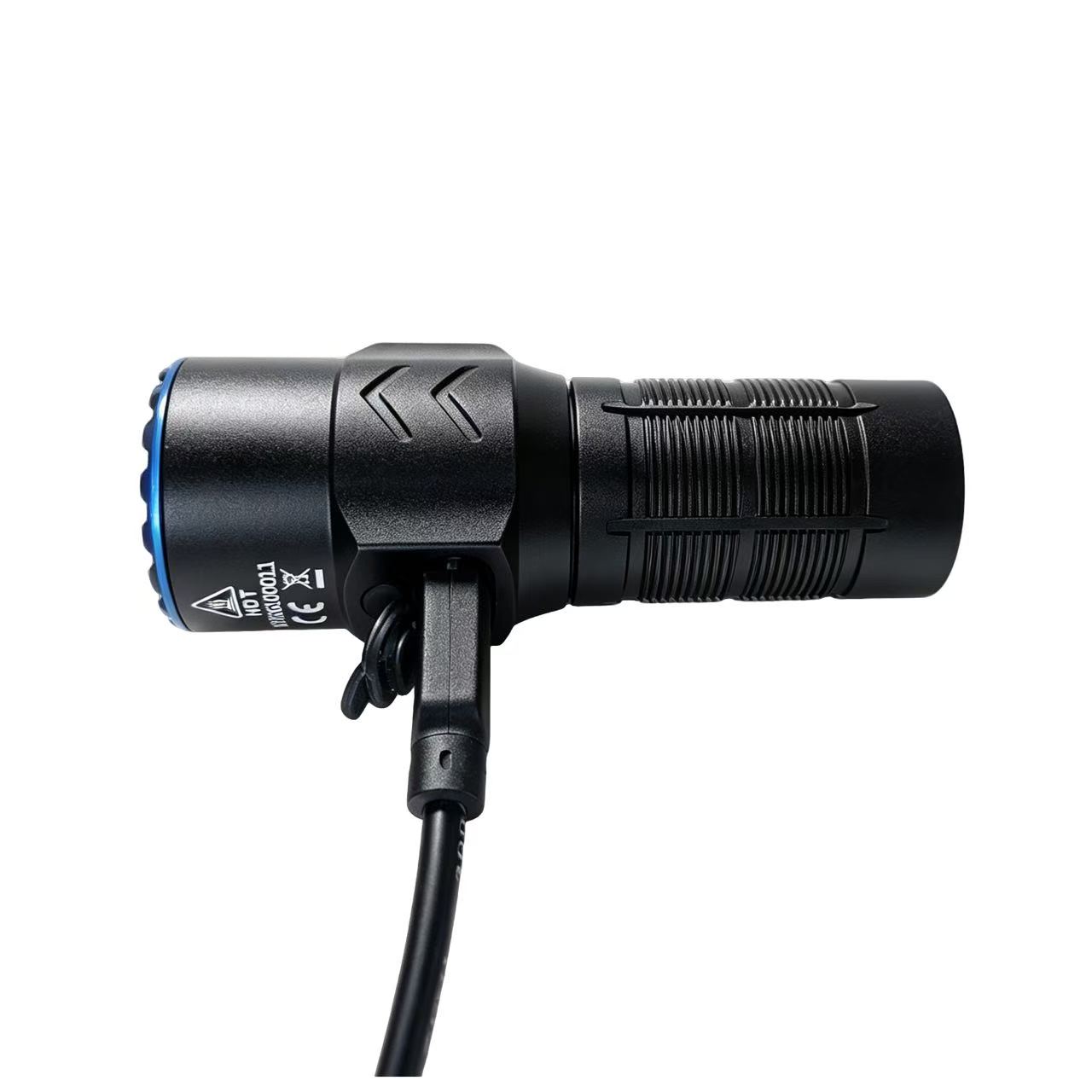

Q5: Is the M23R V2 rechargeable, and how long does charging take?
Yes. The M23R V2 features USB-C direct charging through the flashlight body. A full charge takes approximately 90 minutes, with a red indicator while charging and green when fully charged.
Q6: Can I use a high-power USB-C charger with the M23R V2?
Yes. The M23R V2 can be connected to chargers rated up to 50W. This does not mean the flashlight itself charges at 50W.

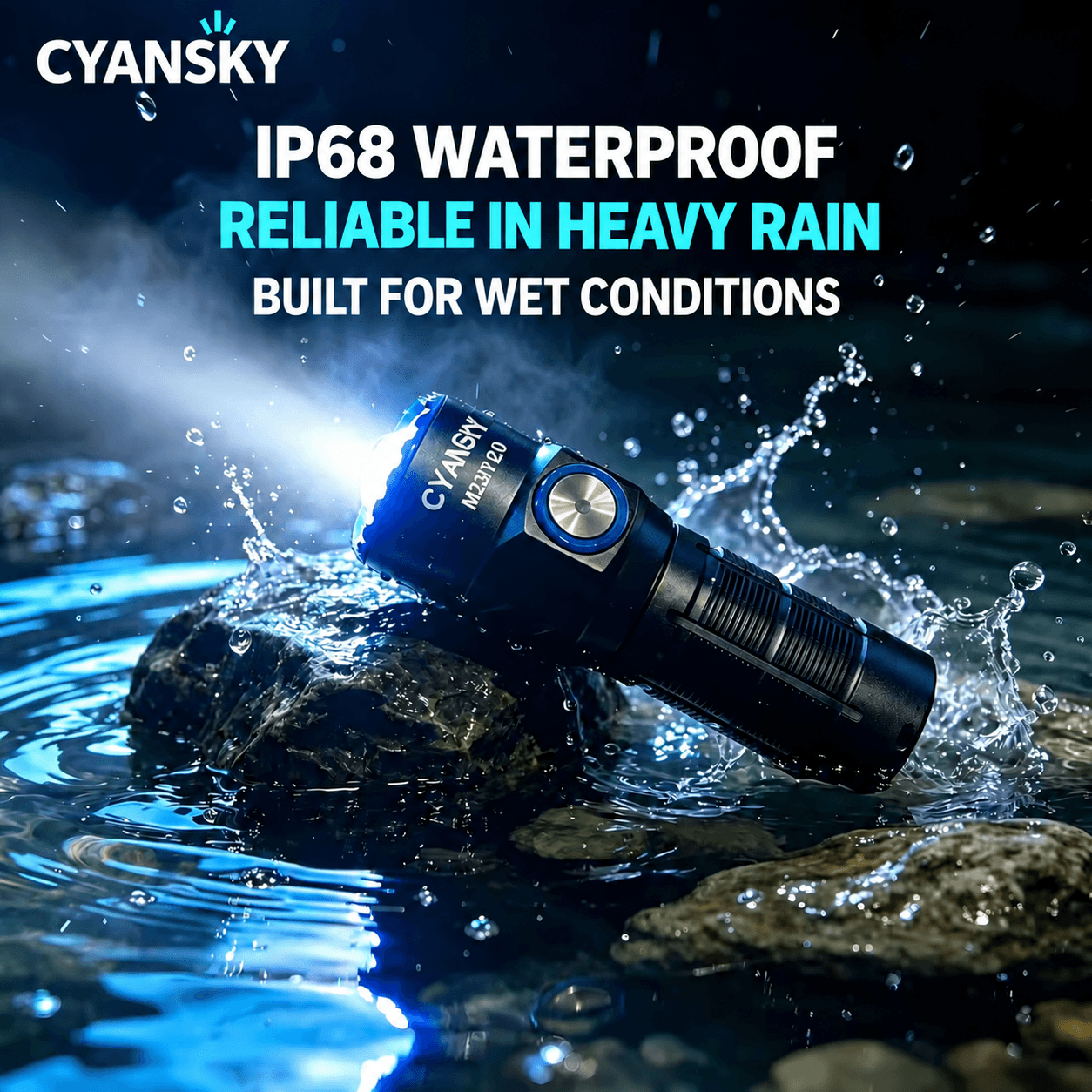

Q7: Is the M23R V2 waterproof?
Yes. The M23R V2 is rated IP68 （2 meters underwater), providing protection against dust and water for demanding outdoor and field use.
Q8: How do I activate Strobe and Lockout modes?
Quickly triple-click the switch to activate Strobe. Quickly four-click to lock or unlock the flashlight and help prevent accidental activation.
Q9: Can the M23R V2 be mounted on a helmet?
Yes. Its compact and lightweight design is suitable for helmet-mounted use with an optional helmet mount, sold separately.
Q10: Can the M23R V2 be used as a power bank?
No. The M23R V2 does not support power bank functionality.
